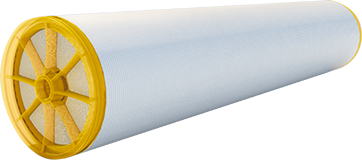

For the different applications of spiral wound modules, UNISOL provides a portfolio of spiral wound modules that stretches from standard modules to products that are designed precisely to the customer needs. The complete spectrum of UF, MF, NF and RO membranes is available within our spiral wound products,which are provided at high quality.

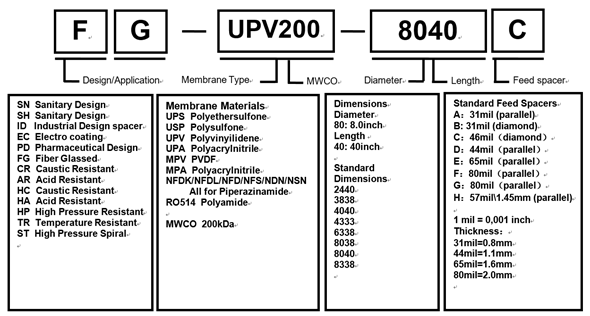

Product Codes for Spiral Wound Modules
Operating Condition for Spiral Wound Modules
SN- / ID- / PD- | FG | SH | CR | AR | HC | HA | HP | TR | |
Max. operating pressure loss (bar) | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
Max. Temperature （。C） | 50 | 50 | 75 | 50 | 50 | 75 | 75 | 50 | 80 |
pH range during filtration | 2-11 | 2-11 | 2-11 | 3-12 | 1-12 | 3-14 | 0-12 | 2-11 | 2-11 |
Outer wrap | Spacer | FRP | Spacer | FRP | FRP | O-Shell | O-Shell | FRP | FRP |
