Within the application of MBR the membrane serves a s a physical barrier to separate the liquid phase from the biomass. A clarifier is no more required to achieve the intended effluent quality, In that way MBR allows to operate at a higher MLSS and increases the efficiency of the biological treatment,decreases the required foot print and improves the stability of the waste water treatment process.

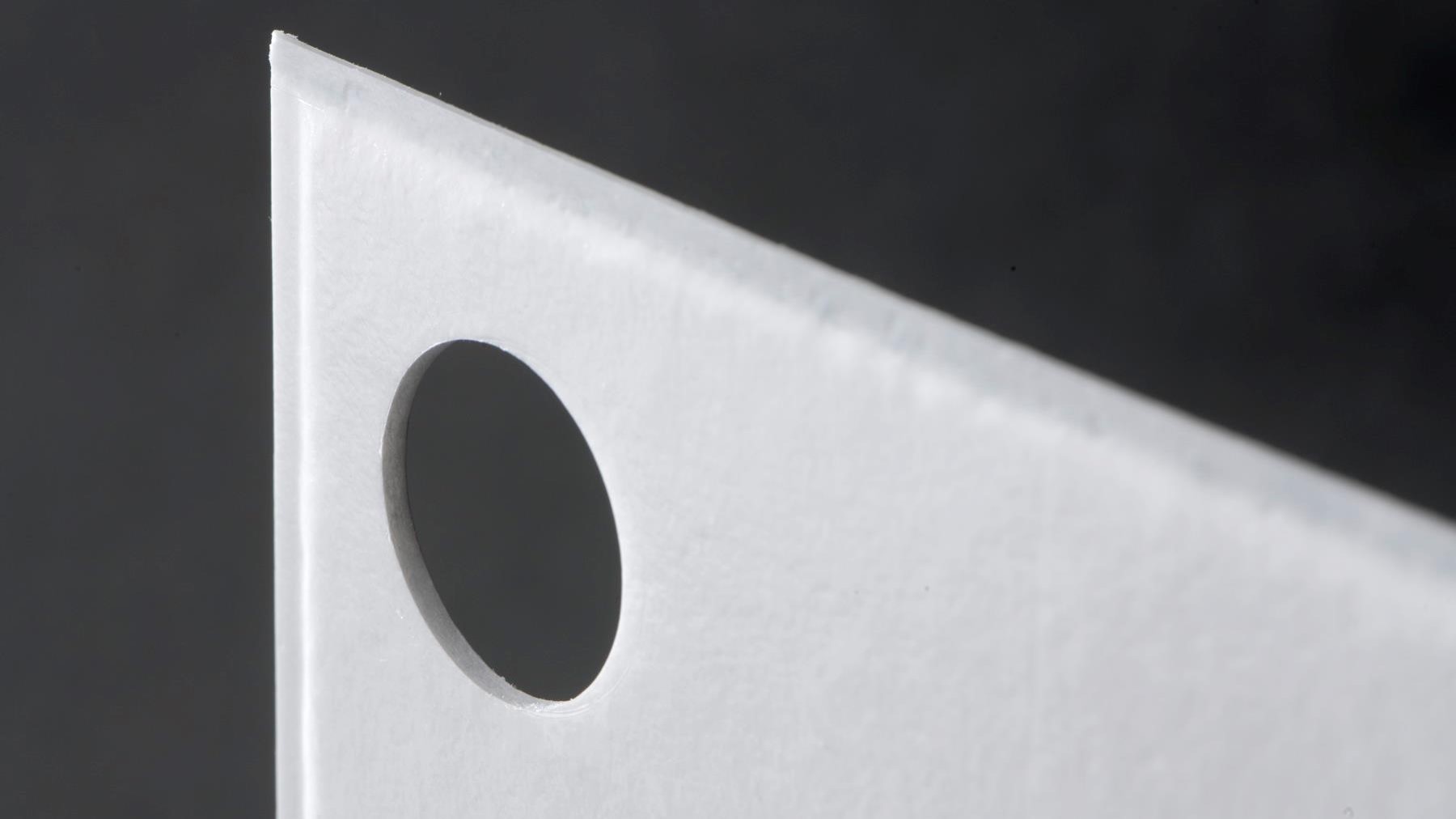

The MYTEX Lamilate
Patented, textile based multilayer laminate
reliable rejection
long-lasting and safe operation
pressure stable
every size or format
free choice of membrane material
Sheets exchangeable

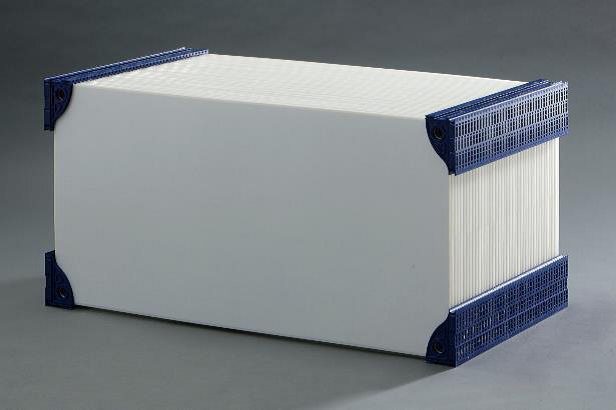

The MYTEX.BLOCKs
The MYTEX.BLOCKs akin to „LEGO“ BLOCK with permeate extraction on each corner, therefore be used for easy installation with a lifting gear and can also be installed in the tank through a "manhole".

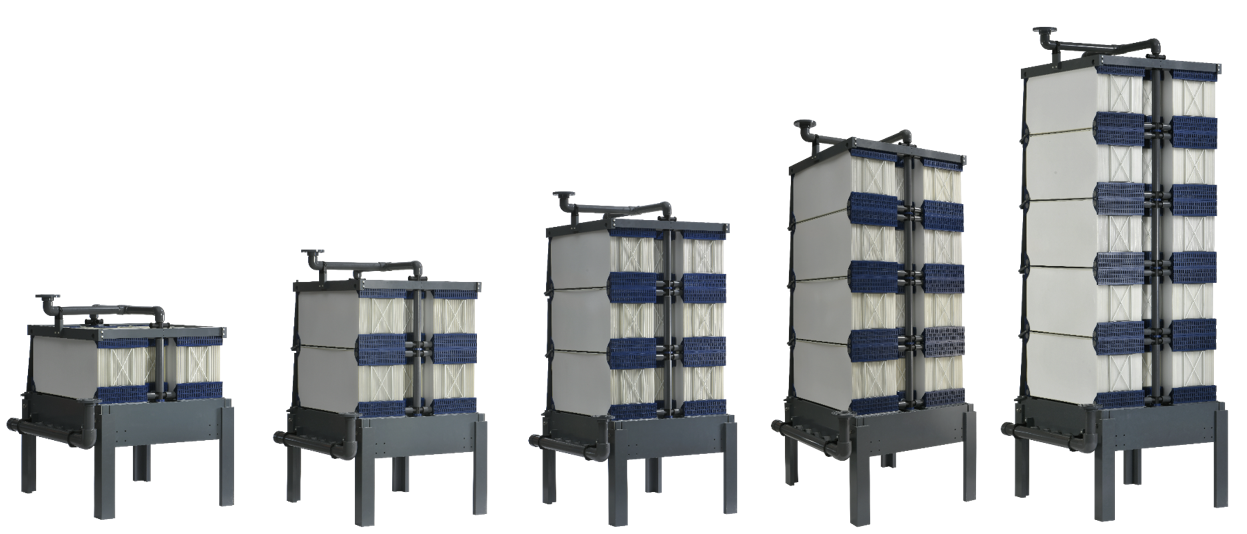

The stackable MYTEX.BLOCKs are perfectly suitable for a simple expansion or the complete module replacement of an existing plant, customer-specific sizes on request is always available.

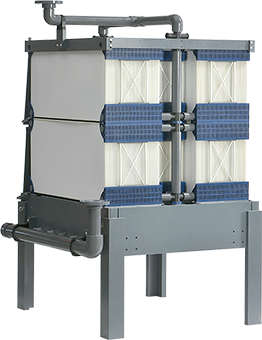

MYT.H4L membrane modules and operating data
Parameters | MYT.H4L1_10 | MYT.H4L1_52 | MYT.H4L2_104 | MYT.H4L1_208 | MYT.H4L4_422 |
Membrane area (m2) | 10 | 52 | 104 | 208 | 422 |
Dimensions(mm) Lenght×Width×Height | 1341×571×1752 | 1341×571×2784 | 1341×1151×2784 | ||
Operating pressure | No limit | No limit | No limit | No limit | No limit |
Max. Backwash pressure | 300mbar | 300mbar | 300mbar | 300mbar | 300mbar |
Operating/Cleaning temperature | < 50°C | < 50°C | < 50°C | < 50°C | < 50°C |
pH range for chemical cleaning | 2-11 | 2-11 | 2-11 | 2-11 | 2-11 |
Recommended MLSS for continuous operation | ≤15 | ≤15 | ≤15 | ≤15 | ≤15 |
Typical design air flow rate | Nm3/h | Nm3/h | 47 Nm3/h | 47 Nm3/h | 104Nm3/h |
